Potencia nominal del motor
30 kW
Flujo del sistema hidráulico
105 l/min
Presión del sistema hidráulico
160 bares
Sistema de dirección
Sensible a la carga
su
20.5-16
Dimensiones
Longitud total
5600 mm
Ancho total
1900 milímetros
Altura total (cabina)
2720 mm
Distancia entre ejes
2250 mm
Banda de rodadura (del neumático)
1400 mm
Altura máxima de elevación
4030 mm
Altura máxima en el pasador del cucharón
3671 mm
Altura máxima de descarga
3200-3400 mm
Distancia máxima de descarga
800 mm
◆ Articulated steering: Tight turning radius for agility.
◆ Oscillating rear axle: Smooth traversal over rough terrain.
◆ Optimal load balance: Adapts to loading, unloading, and material handling tasks.
9. Lithium Power Innovation
◆ ALS916EV advantages: 100% zero-emission, low noise, minimal maintenance, and lower operating costs.

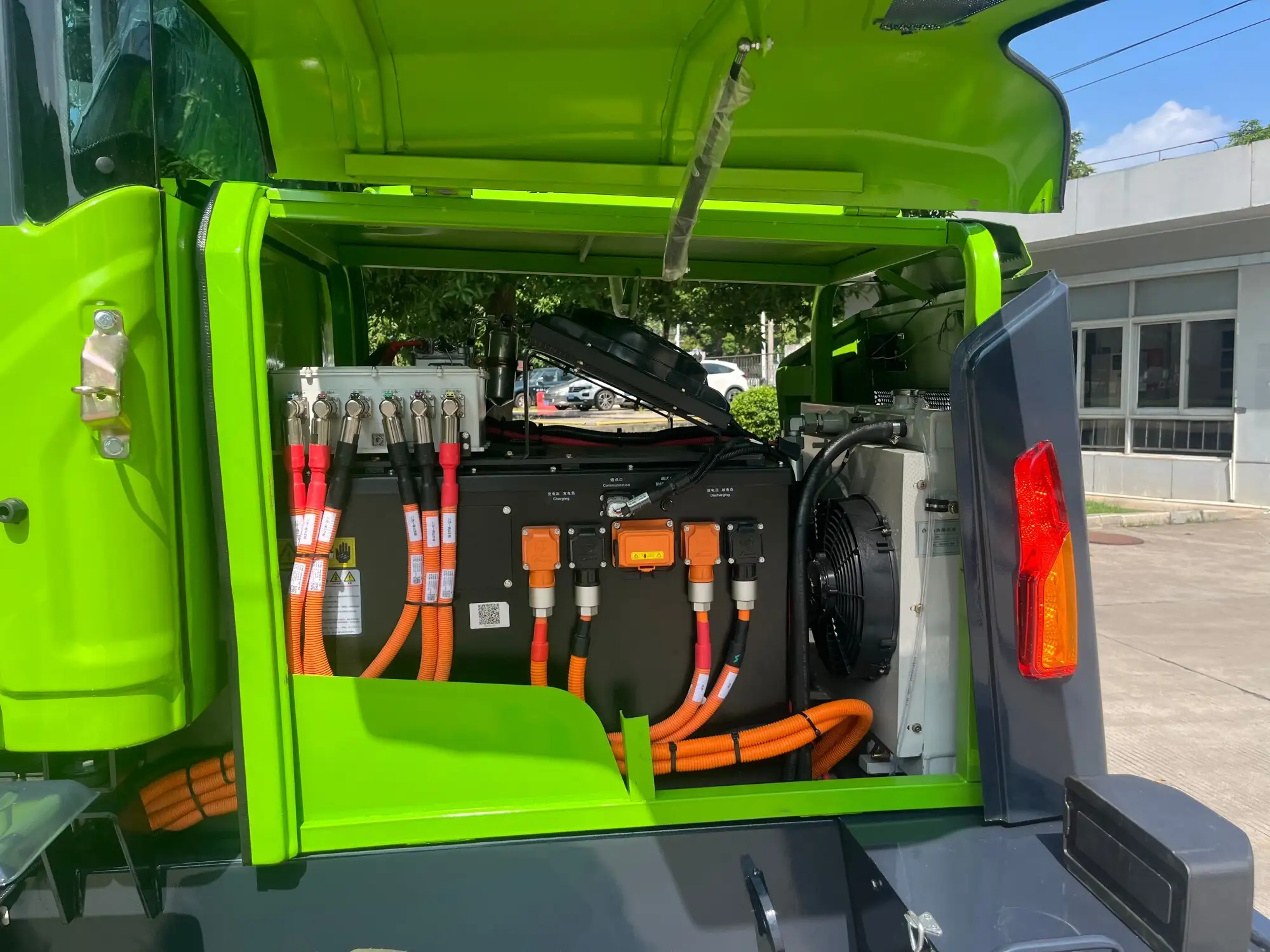

10. Safe Battery Technology
◼ High-performance lithium battery: Lightweight, compact, and long-lasting.
◼ BMS integration: Real-time monitoring for safety.
◼ Global recycling compliance: Certified for disposal in the US, Europe, and Asia.
11. Efficient E-Drive System
◼ Dual independent motors: Decoupled drive and hydraulic motors for optimized efficiency.
◼ Direct-drive transmission: Responsive, gearless, and stepless speed control.
◼ Smart hydraulics: On-demand oil flow with high-speed pumps and compact 2-in-1 motor design.
◼ Water-cooled components: Resists overheating and dust for continuous operation.
12. Digital Color Display
◼ Multi-size screens: Real-time data on speed, charge status, and operating hours.
◼ Submenus & settings: Customizable displays and reverse camera integration.
13. Flexible Charging
◼ Universal compatibility: Multiple plug options for varied power sources.
◼ Auto power adjustment: Optimizes charging rates based on voltage.
◼ Standard fast charging: Includes DC charger and gun.
14. Premium Features
◼ Easy maintenance: Wing doors, orange high-voltage harnesses, and protected connectors.
◼ 360° visibility: Glass roof and transparent cabin for full situational awareness.
◼ Versatile attachments: Booms and tools for diverse material handling needs.
◼ Single-lever control: Simplified operation with integrated gear functions.
◼ Triple braking: Hydraulic, motor disconnect, and accumulator backup for safety.

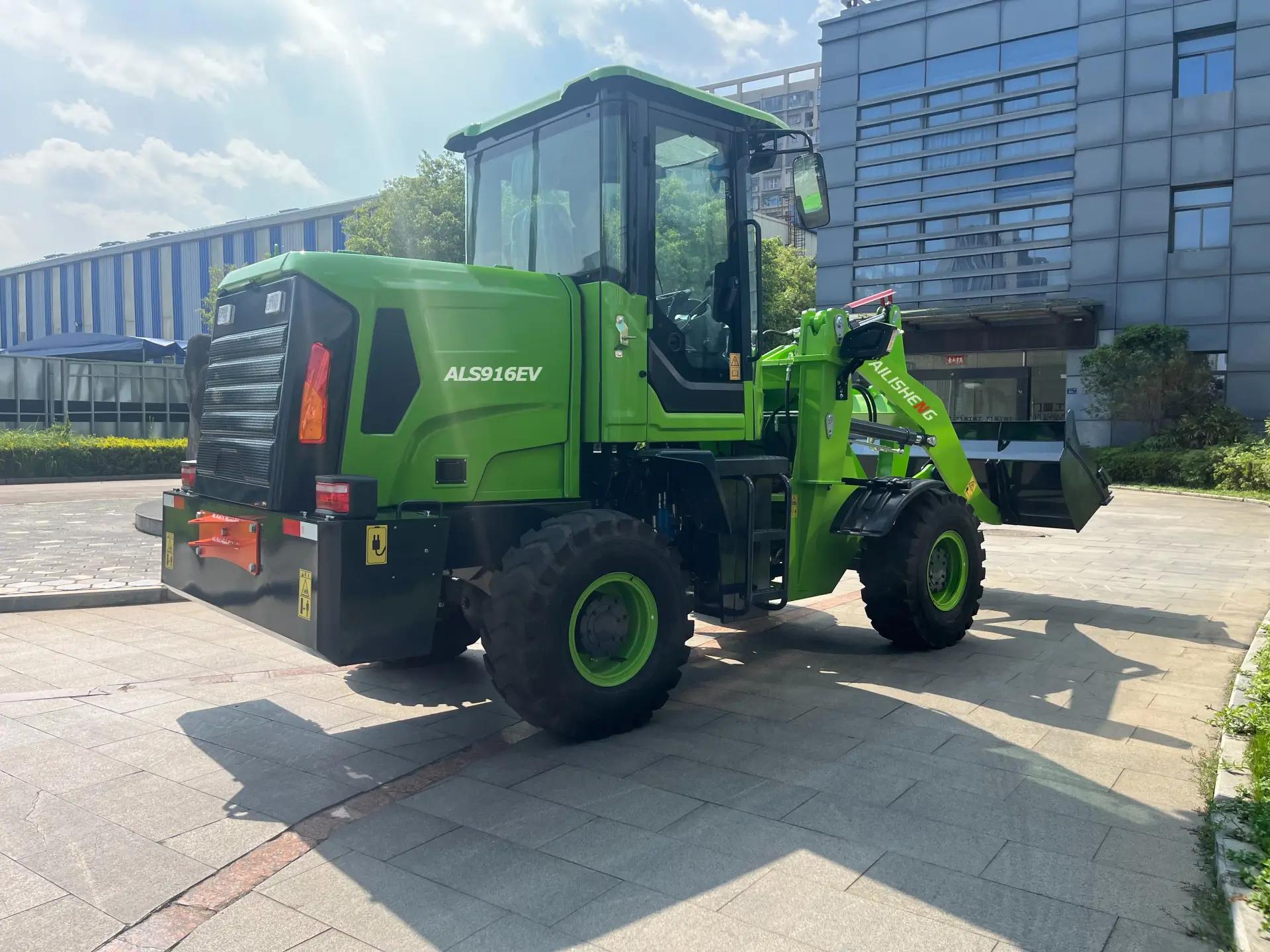

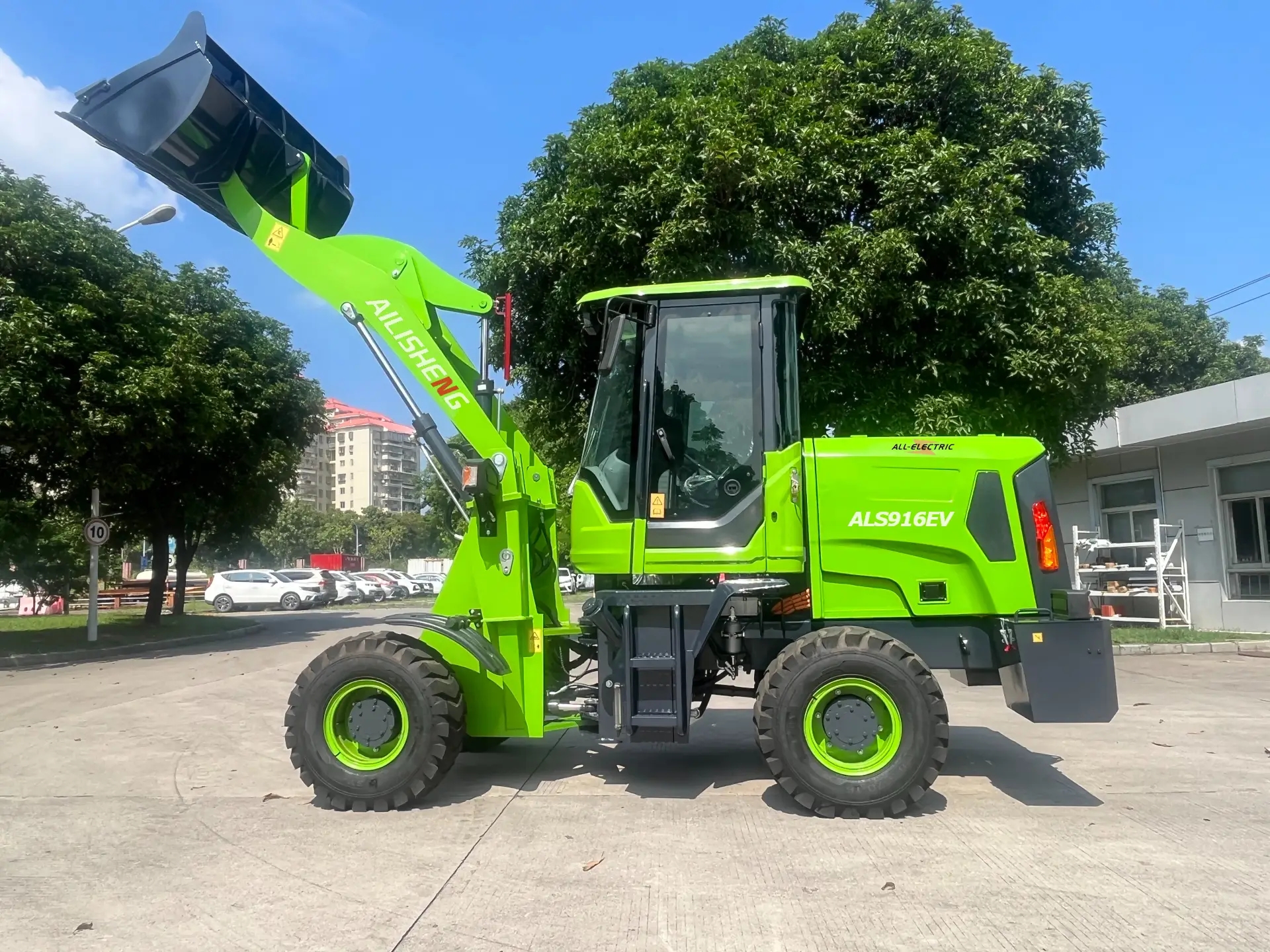

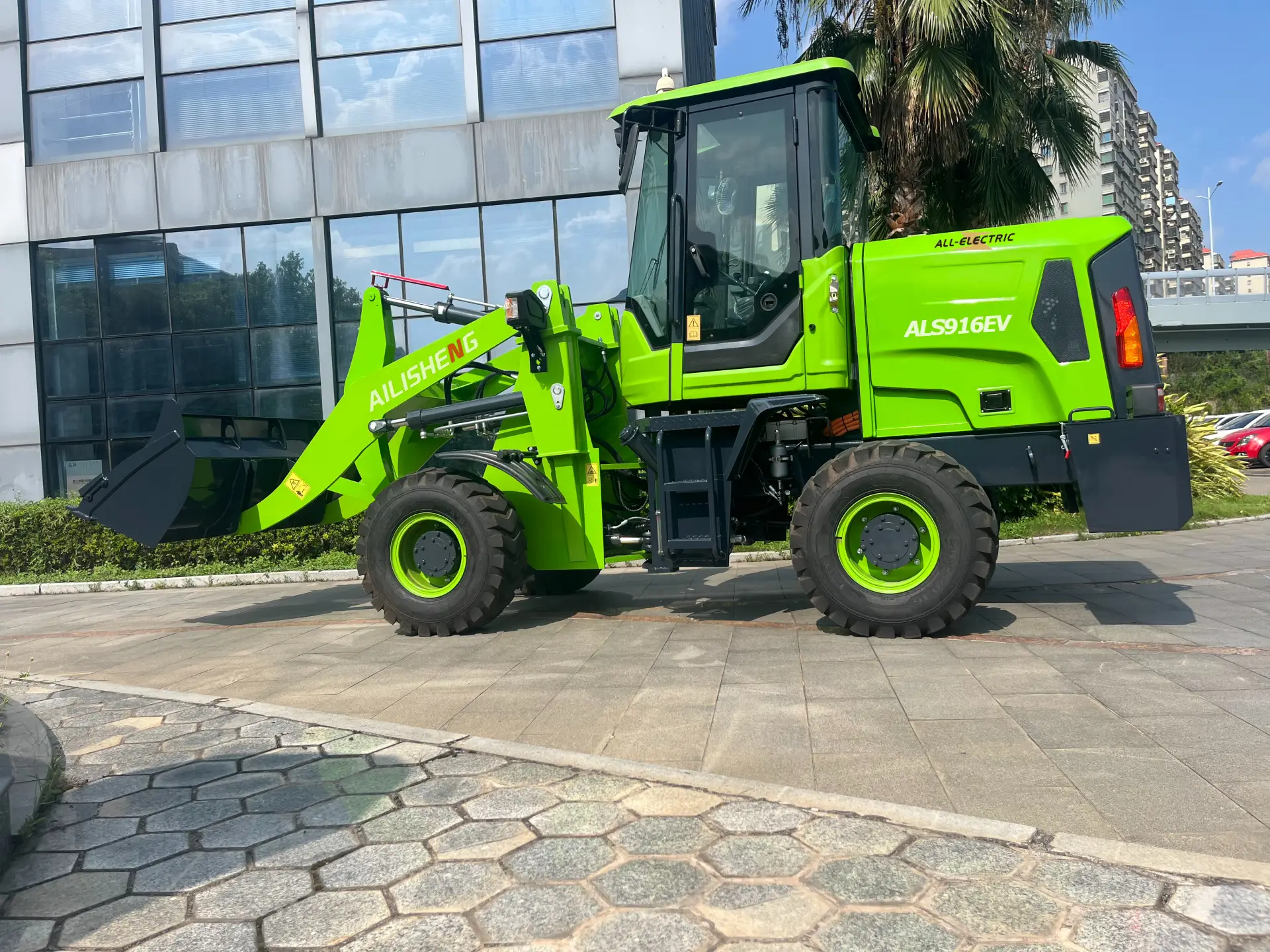

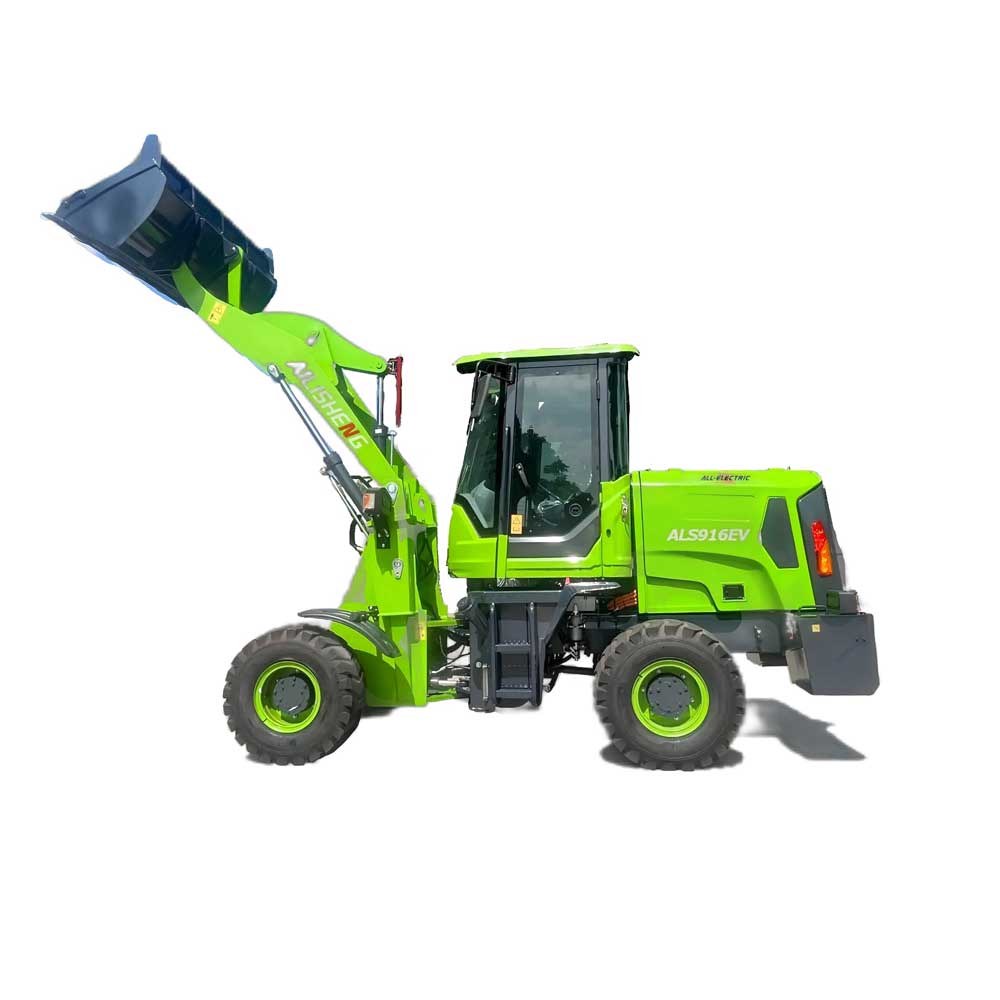

ALS916EV Main Parameters
ALS916EV | |
Working device type | Z-kinematics |
Bucket capacity | 1.0m³ |
Operating weight | 3970kg |
Travel speed | 0-20km/h |
Rated load | 1625kg |
Tipping loads | 4425kg |
Tipping loads | 3250kg |
Max. Lift force | 3800kg |
Battery |
|
Type | LFP |
Votage | 355V |
Battery capacity | 60kWh |
Runtime | 6-8h |
Charger |
|
DC | 1-2h |
Transmission system |
|
Motor type | PMSM |
Rated motor power | 60kW |
Control type | Continuously variable transmission, front and rear gear manoeuvres |
Travel system | Brake Energy Feedback and Hydraulic Braking |
Brake system | Disc brake |
Hydraulic system |
|
Motor type | PMSM |
Rated motor power | 30kW |
Hydraulic system flow | 105L/min |
Hydraulic system pressure | 160bar |
Steering system | Load-sensitive |
Tyre | 20.5-16 |
Dimensions |
|
Overall length | 5600mm |
Overall width | 1900mm |
Overall height(Cab) | 2720mm |
Wheelbase | 2250mm |
Tread (on tire) | 1400mm |
Max. Lifting height | 4030mm |
Max. Height at bucket pin | 3671mm |
Max. Dumping height | 3200-3400mm |
Max. Dumping distance | 800mm |
